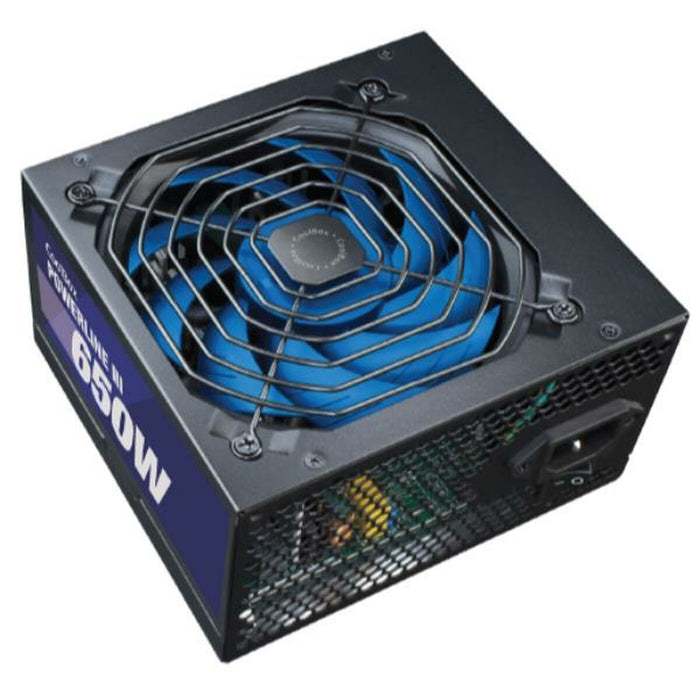

Power supply CoolBox COO-FAPW3-650 650 W

If you are looking for new market trending items, we present the Power supply CoolBox COO-FAPW3-650 650 W!

The CoolBox COO-FAPW3-650 power supply is an essential component for desktop systems requiring stability and energy efficiency. Designed according to Intel’s ATX 12V v2.31 standard, this power supply offers a rated power of 650 W capable of supporting mid-range and advanced setups with reliable performance. Its ATX form factor includes a black chassis and flat cables that help optimize space management and airflow inside the case, keeping temperatures low during extended use. The model stands out for its 85% energy efficiency at 50% load and over 80% efficiency at full load, thanks to the implementation of DC-DC conversion technology, resulting in lower power consumption and more stable voltage delivery. It also features a quiet 120 mm fan with temperature-controlled speed, ensuring a balance between cooling and low noise levels. Regarding connectivity, it includes a full set of connectors: 1 main ATX 20+4 pin connector, 1 12V 8-pin (4+4) connector, 2 PCI Express 6+2 pin connectors, 4 SATA power connectors, and 2 Molex connectors for HDDs, facilitating integration into various hardware configurations that require broad connectivity options for components like hard drives, optical drives, or graphics cards. The power supply incorporates advanced electronic protections to prevent damage from overload (OPP), overvoltage (OVP), undervoltage (UVP), or short circuits (SCP), and features an active power factor above 0.9, which helps reduce losses and improve power quality. Other key technical specs include an operating temperature range of 0 to 50 ºC, relative humidity from 20% to 90% non-condensing, a hold-up time over 16 ms, and a Power Good signal between 100 and 500 ms, ensuring proper synchronization with the motherboard. Its compact dimensions of 150 x 140 x 86 mm and weight of 1.225 kg make it a versatile option for most standard cases. The CoolBox COO-FAPW3-650 is a balanced and reliable solution for users needing an ATX power supply with good performance, efficiency, and multiple connectors to ensure compatibility with modern components in mid-range PC builds.

• Type: Power supply
• Product with plug: Yes
• Type of plug: Plug EU
• Power:
  • 650 W
  • 6 W
• Colour: Black
• Characteristics: On/off interrupter
• Ventilator:
  • 1
  • 12 cm
• Connections:
  • PCI Express x 2
  • 24 PIN x 1
• Recommended use: PC
• AC input frequency: 50-60 Hz
• Connectors: SATA x 4
• Width: 15 cm
• Amperage:
  • 6 A
  • 25 A
